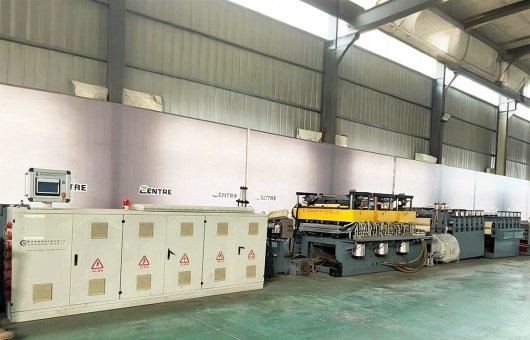

Second-hand Used PP Hollow Three-layer Plastic Building Formwork Production Line

Second-hand Used PP Hollow Three-layer Plastic Building Formwork Production Line
Second-hand Used PP Hollow Three-layer Plastic Building Formwork Production Line
Second-hand Used PP Hollow Three-layer Plastic Building Formwork Production Line
Second-hand Used PP Hollow Three-layer Plastic Building Formwork Production Line
Second-hand Used PP Hollow Three-layer Plastic Building Formwork Production Line
Highly Efficient Second-hand Used PP Hollow Three-layer Plastic Building Formwork Production Line
Highly Efficient Second-hand Used PP Hollow Three-layer Plastic Building Formwork Production Line
Highly Efficient Second-hand Used PP Hollow Three-layer Plastic Building Formwork Production Line

Second-hand Used PP Hollow Three-layer Plastic Building Formwork Production Line

Conditions Of Use:

• Power Supply: 380v / 50 HZ / 3P + N + E

• Covering An Area: Length X, Width X, 35 Meters, X5 Meters, X4 Meters

• Total Installed Capacity: About 420KW Actual Electricity Consumption:,About 280 KW(It Is Recommended That The Transformer Shall Be No Less Than 315KVA)

• Cooling Water: Temperature Is Below 30℃, Pressure Is 2-4kg / CMG, Water Flow Is 40 Lm ³ / hr, Water Consumption Is 1.5m³ / hr

• Compressed Air: Pressure 0.6-0.8MPa, Gas Consumption 1.5m ³ / hr

• Installation Site: Indoor (Temperature 0℃ -40℃, Relative Humidity 10% -80%)


Specifications:

• Material: PP Raw Material, Recycled Particle Material

• Width: 915mm

• Length: Infinite Length Thickness-14-16mm


Production:Extrusion Capacity of 350-450kg / h, Width 915 mm X, Length 1830 mm X, 15 mm Thick, (About 8.8kg / m 2) Design Daily Output Of About 600-800 Sheets. The Ordering Party Shall Provide The Raw Materials For Test And Deliver The Preliminary Test Acceptance In The Contractors Factory


Design Line Speed:0.2-1.5m/min


PP, PE hollow three layer co-extrusion composite plastic construction template production line, is our company according to foreign advanced equipment technology, by our company independent research and development of the eighth generation of new polyethylene, polypropylene (PE,PP) class waste plastics and calcium carbonate filling co-extrusion composite process production of hollow three layer co-extrusion composite plastic construction template production line. Now has applied for the national patent, cross square hollow three-layer composite plastic building template production line patent no.: ZL2016 2 0772538.9, cross square hollow three-layer composite plastic building template patent no.: ZL2016 2 0748275.8. Cross square hollow three-layer composite plastic building template advantages are: low cost, light weight, continuous use of more than 50 times. Waste board material can be crushed and reused and many other advantages.
